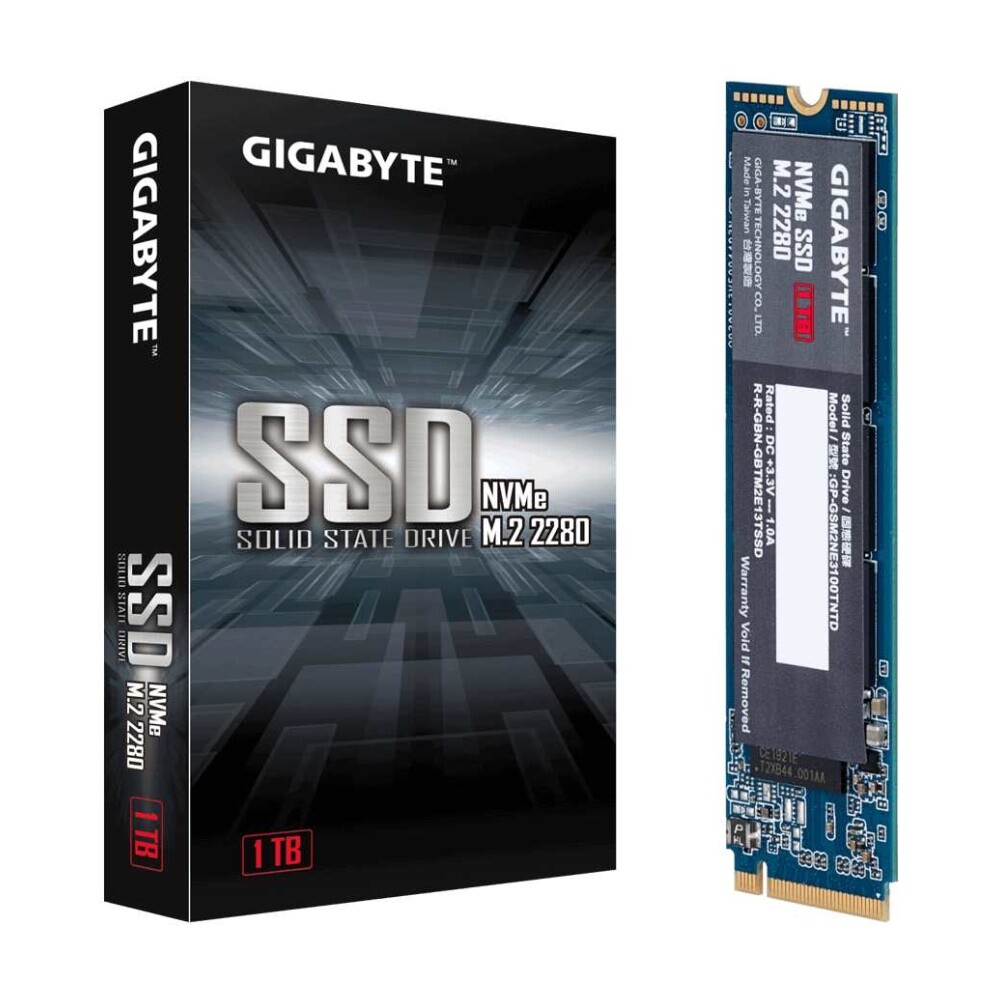

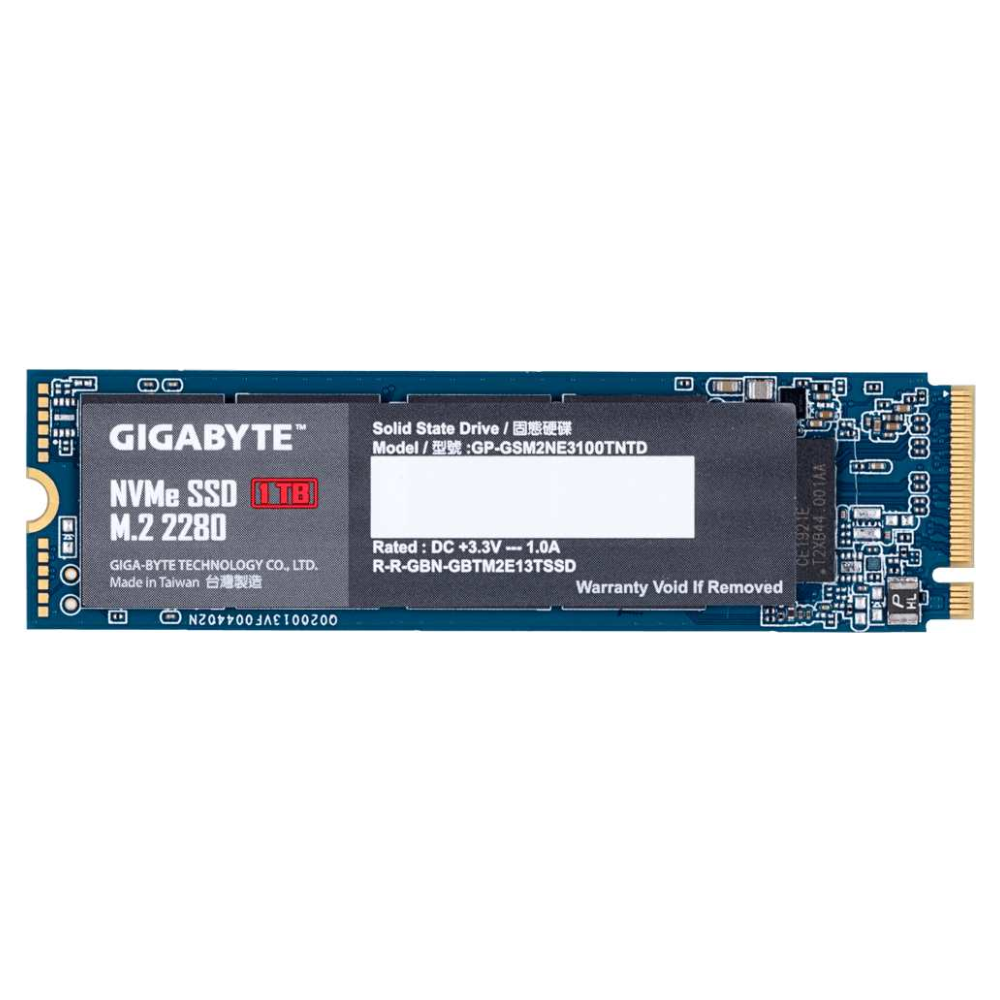

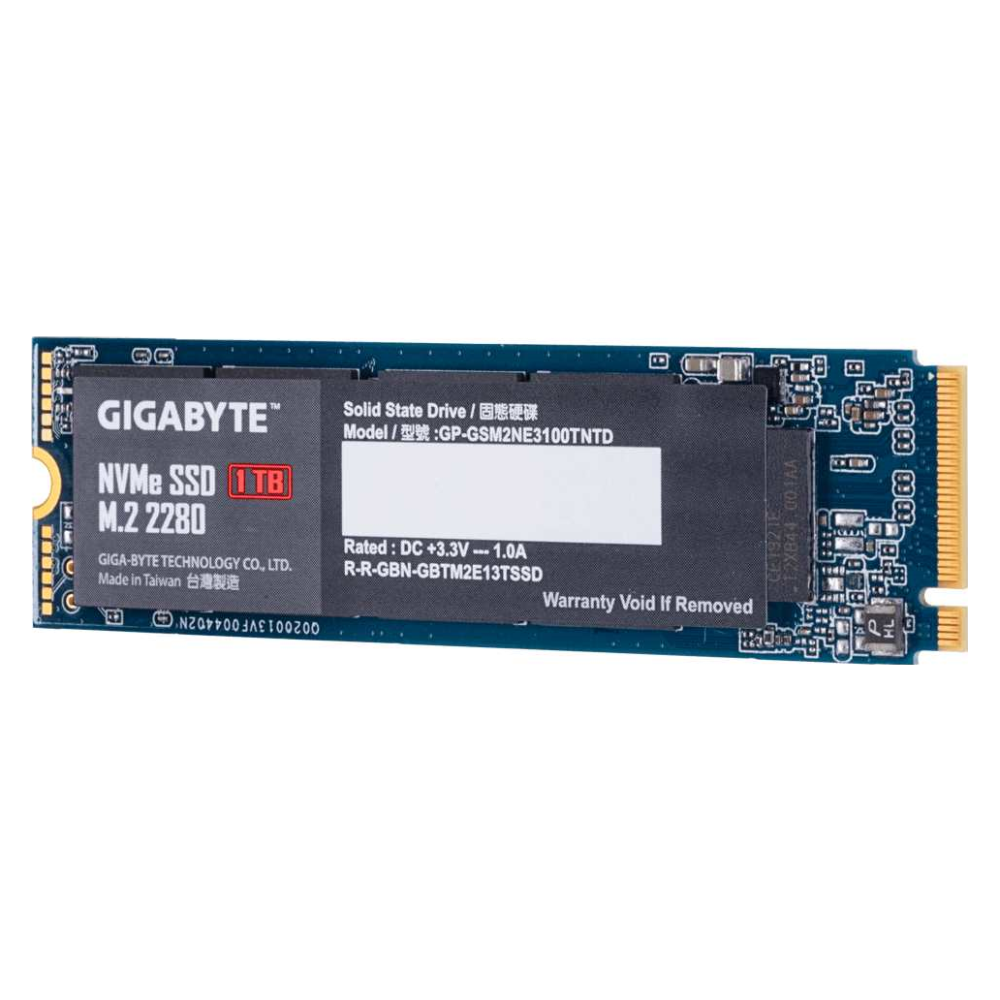

Gigabyte 1TB SSD NVME M.2 2500/2100 GSM2NE3100TNTD

Gigabyte 1TB SSD provides performance for your daily computing tasks, boast of best controller & NAND flash. M.2 PCIe SSD gives you faster data transferring experience compared to 2.5″ SATA solid state drive.

Gigabyte 1TB SSD M.2 PCIe NVMe featured with Form Factor: M.2 2280, PCI-Express 3.0 x4, NVMe 1.3, Sequential Read Speed up to 2500 MB/s, Sequential Write speed up to 2100 MB/s. In this SSD, The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM. Gigabyte 1TB SSD provides you faster data transferring experience compared to 2.5″ SATA solid state drive. This Latest Gigabyte 1TB M.2 PCIe NVMe SSD comes with 03 years of warranty.

Product Specifications

• Interface
  PCI-Express 3.0 x4, NVMe 1.3
• Form Factor
  M.2 2280
• Total Capacity
  1TB
• NAND
  NAND Flash
• External DDR Cache
  N/A
• Sequential Read speed
  Up to 2500 MB/s
• Sequential Write speed
  Up to 2100 MB/s
• Random Read IOPS
  Up to 295k
• Random Write IOPS
  Up to 430k
• Dimension
  80 x 22 x 2.3 mm
• Mean time between failure (MTBF)
  1.5M hours
• Power Consumption (Active)
  Avg. read : 3.5W ; Write : 3.3W
• Power Consumption (Idle)
  2.1mw
• Temperature (Operating)
  0°C to 70°C
• Temperature (Storage)
  -40°C to 85°C
• Warranty
  • 1. Limited 5-years or 1600TBW.
  • 2. Limited warranty based on 5 years or 1600TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
    *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
  • 3. When the usage of an NVME SSD as indicated by the “Percentage Used” (SMART ID: 05) in SMART page of “GIGABYTE SSD toolbox” reaches 100 means out of warranty. (A new unused product will show the number of 0)
