Product Overview

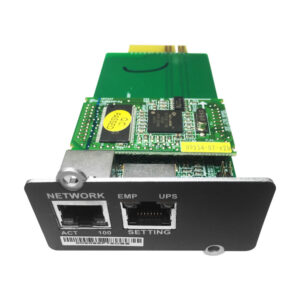

A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD205 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.



An optional environmental sensor (ENVIROSENSOR) can be connected to the RMCARD205 to monitor the ambient temperature and humidity of a server room, IT closet, or other critical environments. Administrators define temperature parameters in Fahrenheit or Celsius; thresholds can be configured to prompt the RMCARD205 to send a predefined notifications. The RMCARD205 comes with a three-year warranty.



Environmental Sensor Compatibility

The optional ENVIROSENSOR connects to the Universal port on the RMCARD205 to monitor ambient temperature and humidity. Notifications are enabled by default and alert thresholds can be easily customized to fit environmental control requirements.



Remote Management

Allows administrators to control and configure the UPS without being onsite via a standard web browser, command line interface (CLI), or network management system (NMS).



Built-In Automatic Shutdown

In conjunction with PowerPanel Business Edition Client, you can protect servers and workstations from data loss due to power failure.



Offsite Scheduling of UPS and ATS PDU Operation

Lets administrators conduct scheduled times for UPS and ATS PDU shutdown, startup, and reboot. Functionality includes event action management, event logging, and automatic event notification.



Automatic Event Notification

Provides immediate updates about power events via Email, SMS, SNMP Traps, or Syslog server.



Event Logging and Status Records

Traces the UPS and ATS PDU operational history, tracking events and input/output power status records.



Event Action Settings

Allows administrators to customize UPS actions in response to power and system events.



Upgradable Firmware

Keep the RMCARD205 up to date with the latest firmware version. New firmware releases include new functionality, feature enhancements, and bug fixes.



Upgradable UPS Firmware*

Maintain UPS firmware that manages features and functions up to date to. The UPS firmware upgrade is easy to do via the web management interface.



Three-Year Warranty

Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

*Select UPS models only. Please contact your CyberPower Systems representative for information.



What’s In The Box

CyberPower Remote Management Card, RJ45/DB9 Serial Port Connection Cable, Quick Start Guide, Spare Jumper
